RP50 Raman Probe
The fibre-coupled RP50 Raman probe is designed to operate with the HES2000 spatial heterodyne spectrometer.
Operating at a 25mm standoff distance from the enclosure aperture, these probes facilitate non-destruction interrogation of target samples to capture material-specific Raman spectra.
The specifications given are for the standard RP50. Please get in touch for customisation options, including alternative Raman excitation operating wavelengths.
Product Specifications
The fibre-coupled RP50 Raman probe is designed to operate with the HES2000 spatial heterodyne spectrometer.
Operating at a 25mm standoff distance from the enclosure aperture, these probes facilitate non-destruction interrogation of target samples to capture material-specific Raman spectra.
The specifications given are for the standard RP50. Please get in touch for customisation options, including alternative Raman excitation operating wavelengths.
Front Panel Features:
Applications include:
- Continuous frame and single frame capture options
- FVB/2D modes
- Image, FFT and spectrum display options
- Frame averaging
- Peak Labelling
- Dark image subtraction
- Spectra overlay function
- Composition analysis of chemicals
- Contaminant detection
- Unknown sample analysis in Nuclear decommissionin
| Feature | Detail |
|---|---|
| Raman operating λ | 785 nm |
| Configuration | Dichroic mirror-based confocal |
| Standoff distance (from enclsure aperture) |
25 mm |
| Laser fibre connection | FC/PC |
| Spectrometer fibre connection | SMA |
| Dimensions | 160 x 100 x 50 mm |
| Mass | < 500g |
Probe performance comparison between 785nm F1(telescopic) and Box probe

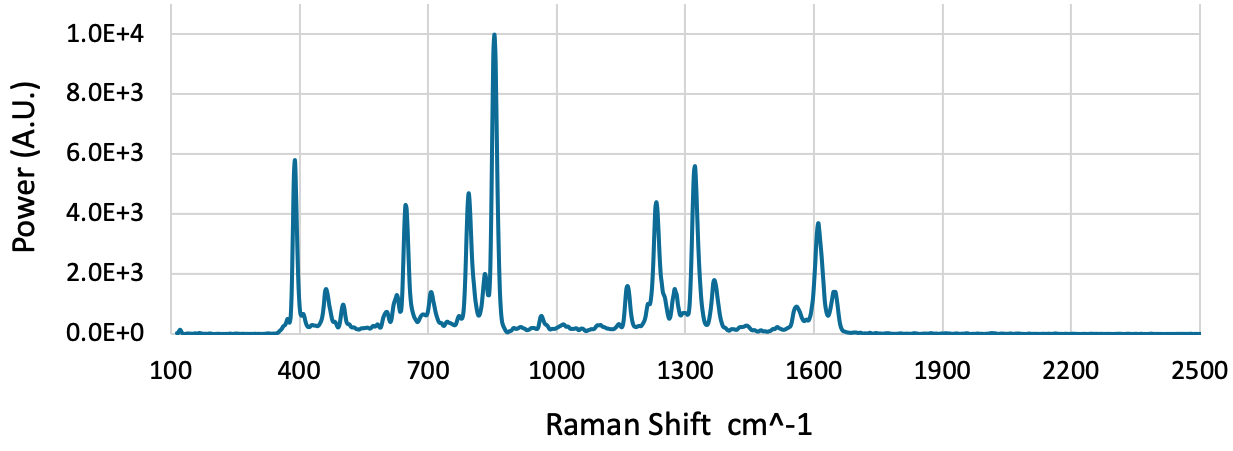

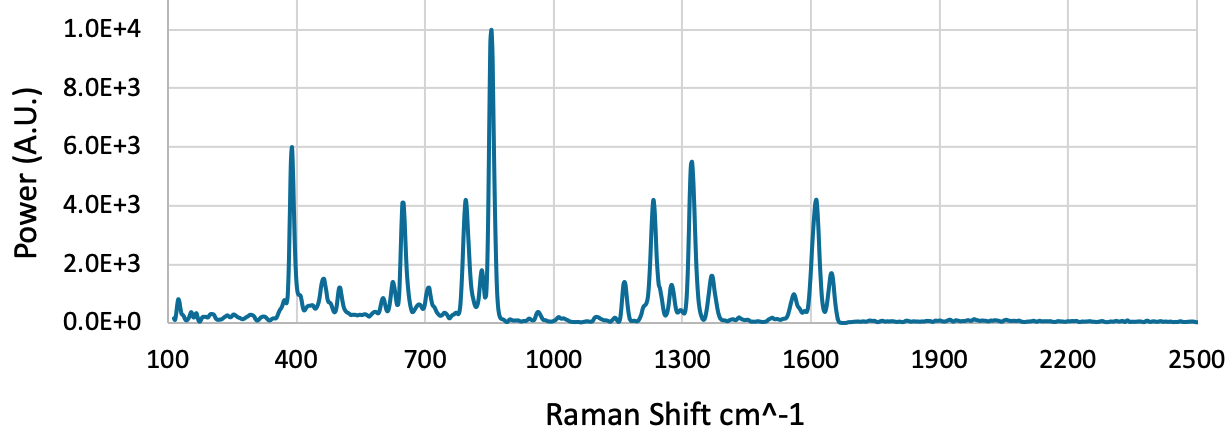

The new F1 probe currently requires a 0.5s exposure to get a Paracetamol spectrum compared to the previous box probe requiring a 2.5s exposure to get the same performance level. The F1 probe is 4x better than the box probe. Note: With the box probe, overexposure is seen at 2.5s, so it can only be exposed up to 1.9s (less performance).

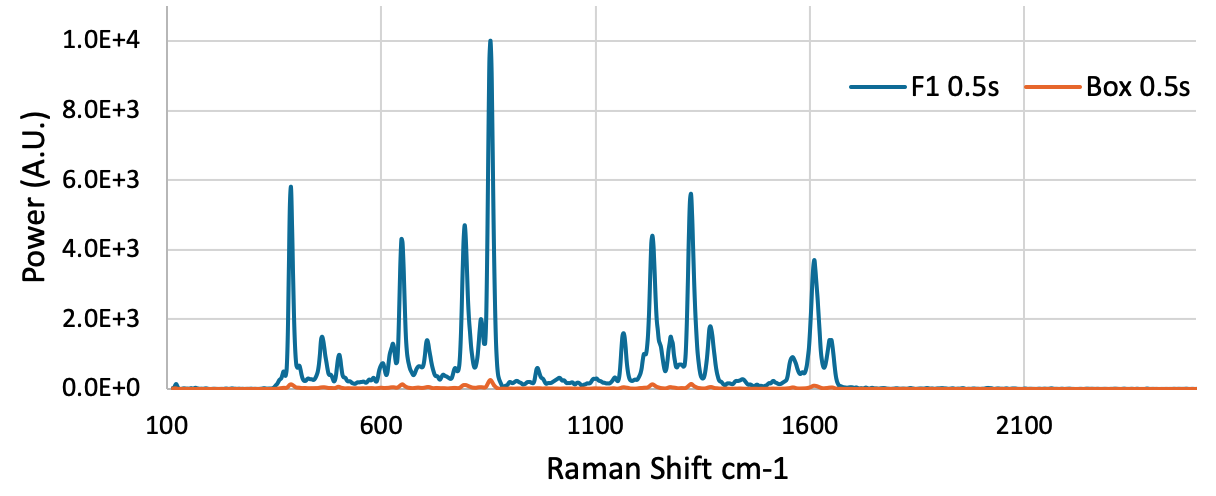

For reference: Both probes at 0.5s exposure. Box probe has a peak height of 2.5E+2
Paracetamol
